Understanding What Shapes the Cost of a Modular Transparent LED Display

When buyers ask “how much is a modular transparent LED display,” the real question behind it is usually about value: what specifications, materials, and logistics factors determine the total investment required for a rental-grade transparent screen. Rather than a single fixed number, the cost of a modular transparent LED display is shaped by cabinet material, pixel pitch, module compatibility, installation method, and transport efficiency. The WBlaze-T Series from WHALEY, developed by Shenzhen Canmingxing Technology Co., Ltd. (HK Whaley Technology Limited), offers a clear framework for understanding these cost drivers, based on its documented technical and service specifications.

Corporate Background Behind the WBlaze-T Series

WHALEY built the WBlaze-T Series to respond directly to long-standing pain points in the rental and stage LED display industry. Traditional rental and stage LED displays often use heavy cabinets that increase rigging time, raise transport costs, and add structural load. Transparent screens used on stages also need to withstand wind and maintain flatness over long-term use, while creative stage designs demand flexible assembly across flat surfaces, curves, and right-angle structures. WHALEY positions the WBlaze-T Series specifically as a rental LED display line for high-end stages, theaters, and rental applications, emphasizing lightness, transparency, rapid installation, and modular flexibility. The WBlaze-T Series rental product document V1.0 was released on January 9, 2026, establishing the current technical baseline for the series.

Differentiated Advantages That Influence Overall Value

Several engineering choices directly affect the total cost of ownership for a modular transparent LED display:

• Carbon fiber composite cabinet frame: reduces weight by 50% and increases installation efficiency by 50%, which lowers labor time and structural load requirements.
• Lower EMI and lighter structure: supports demanding stage and rental environments without added reinforcement costs.
• Four interlocking cabinet sizes: support flat, curved, and right-angle splicing, reducing the need for custom-built alternatives.
• Front and rear module maintenance plus interchangeable BY3.9 and P7.81 module compatibility: reduce service complexity and long-term maintenance expense.
• GOB process and IP65 rating: improve durability and reduce damage risk, which affects replacement frequency.

Together, these features deliver a transparent rental LED display that installs faster, transports more efficiently, and withstands wind, dust, and moisture while maintaining high contrast and dimensional flatness — all factors that influence the real-world cost of deploying the display.

Technical Specifications That Determine Configuration Cost

The WBlaze-T Series includes cabinet models T-A, T-B1, T-B2, and T-C, paired with pixel pitch models T3.9-7.8, T5.9, and T7.8. Core technical metrics include:

• Refresh rate: 7680 Hz
• Grayscale: 16 bit
• Module size: 500*250 mm
• Cabinet material: Carbon fiber
• Viewing angle: ≥160
• Arc lock angle: 0, ±2.5, ±5, ±7.5, ±10
• Maximum power consumption: 320 W/m²
• Average power consumption: 160 W/m²
• Operating voltage: AC100-240 V
• Maximum lifting/seating: 20 m
• Protection level: IP65
• Operating temperature/humidity: -20°C to +45°C / 10% to 90% RH
• Storage temperature/humidity: -40°C to +60°C / 10% to 90% RH
• Service life: ≥50000 hours

These figures are theoretical values obtained under test conditions; actual usage may vary slightly due to individual differences, software versions, or environmental factors. Since power consumption, protection level, and service life directly affect operating and maintenance costs, buyers evaluating a modular transparent LED display should weigh these specifications alongside cabinet size and pixel pitch when estimating total investment.

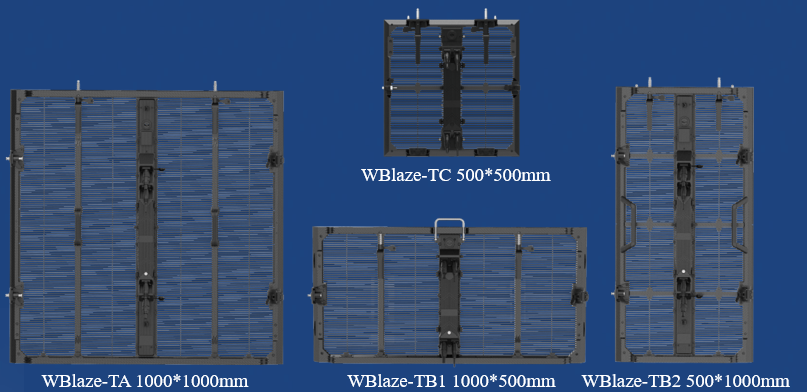

Cabinet Models: Sizing as a Cost Variable

Cabinet size is one of the most direct cost variables in a modular transparent LED display. The WBlaze-T Series offers four interlocking sizes:

• T-A (1000*1000mm): full-format cabinet weighing 10.5 kg (T3.9-7.8 configuration) or 10 kg (T7.8 configuration), designed for large flat or curved screen areas.
• T-B1 (1000*500mm): wide half-format cabinet at 6.3 kg (T3.9-7.8) or 6.0 kg (T7.8), suited for horizontal layout flexibility.
• T-B2 (500*1000mm): tall half-format cabinet at 6.9 kg (T3.9-7.8) or 6.7 kg (T7.8), suited for vertical layout flexibility.
• T-C (500*500mm): compact cabinet at 4.6 kg (T3.9-7.8) or 4.4 kg (T7.8), suited for detailed or irregular screen shapes such as a digital cube.

All four sizes interlock freely and support seat-mounted or hoist-mounted installation up to 20 m, which affects rigging and labor cost planning.

Pixel Pitch Models: Resolution as a Cost Factor

Pixel pitch selection also affects configuration cost. T3.9-7.8 offers 3.9mm horizontal and 7.8mm vertical pixel pitch with black light ≤2000 nits and white light ≤4500 nits, suited for detailed stage and theater visuals. T5.9 uses SMD1921 LEDs at a 5.9mm pitch with black light ≤1600 nits and white light ≤4500 nits, offering balanced visual density and brightness. T7.8 provides a 7.8mm pitch with a hollowed-out module design, black light ≤1500 nits, and white light ≤4500 nits, emphasizing high transparency and environmental adaptability. Each pixel pitch model is available across all four cabinet sizes, allowing buyers to balance resolution needs against budget.

Service and Logistics Factors Affecting Total Cost

Transport and labor efficiency are significant contributors to the overall cost of deploying a modular transparent LED display. The WBlaze-T Series uses a quick-assembly trolley to lower transportation and installation costs, with documented loading capacity: a 17.5M cargo box holds 50 aluminum trolleys per car (900 m² per car); a 13M box holds 32 trolleys (576 m²); a 12M/40DV box holds 28 trolleys (504 m²); and a 9.6M box holds 20 trolleys (360 m²). Combined with quick lock mounting for fast rigging and hoisting, and front-and-rear module maintenance for service flexibility, these logistics figures give buyers concrete data for estimating freight and labor expenses across different project scales.

Conclusion

The true answer to “how much is a modular transparent LED display” depends on cabinet size, pixel pitch, installation method, and transport logistics rather than a single fixed figure. The WBlaze-T Series from WHALEY illustrates how carbon fiber construction, interlocking cabinet options, interchangeable module compatibility, and documented loading efficiency together shape the total investment required for high-end stage, theater, and rental deployments.
