Industry Background: The Critical Challenge of 260°C Insulation in Petrochemical Operations

The petrochemical industry operates under some of the most demanding conditions in modern manufacturing, where electrical insulation materials must withstand not only extreme temperatures reaching 260°C but also continuous exposure to aggressive chemical environments, high-voltage electrical stress, and mechanical loading. Traditional textolite rods—thermoset laminated composites historically based on phenolic or epoxy resin systems—face a critical performance ceiling in these applications. When processing temperatures approach or exceed 260°C, conventional epoxy-glass laminates (FR4) begin to experience resin degradation, dimensional instability, and loss of dielectric strength, creating safety hazards and unplanned downtime.

Industry professionals seeking to evaluate textolite rod suppliers for ultra-high-temperature petrochemical applications require a structured analytical framework rather than simple brand rankings. The challenge lies not in identifying the "top 10 brands" but in understanding the fundamental material science limitations of traditional textolite and recognizing when alternative high-performance polymers become necessary. Shenzhen Xiongyihua Plastic Insulation Ltd., with deep expertise accumulated since 2006 in engineering plastics and insulation materials, has developed comprehensive technical knowledge through serving global petrochemical clients across Asia, Europe, and North America, providing a foundation for authoritative industry analysis.

Authoritative Analysis: Material Performance Boundaries and Selection Logic

The Textolite Temperature Ceiling

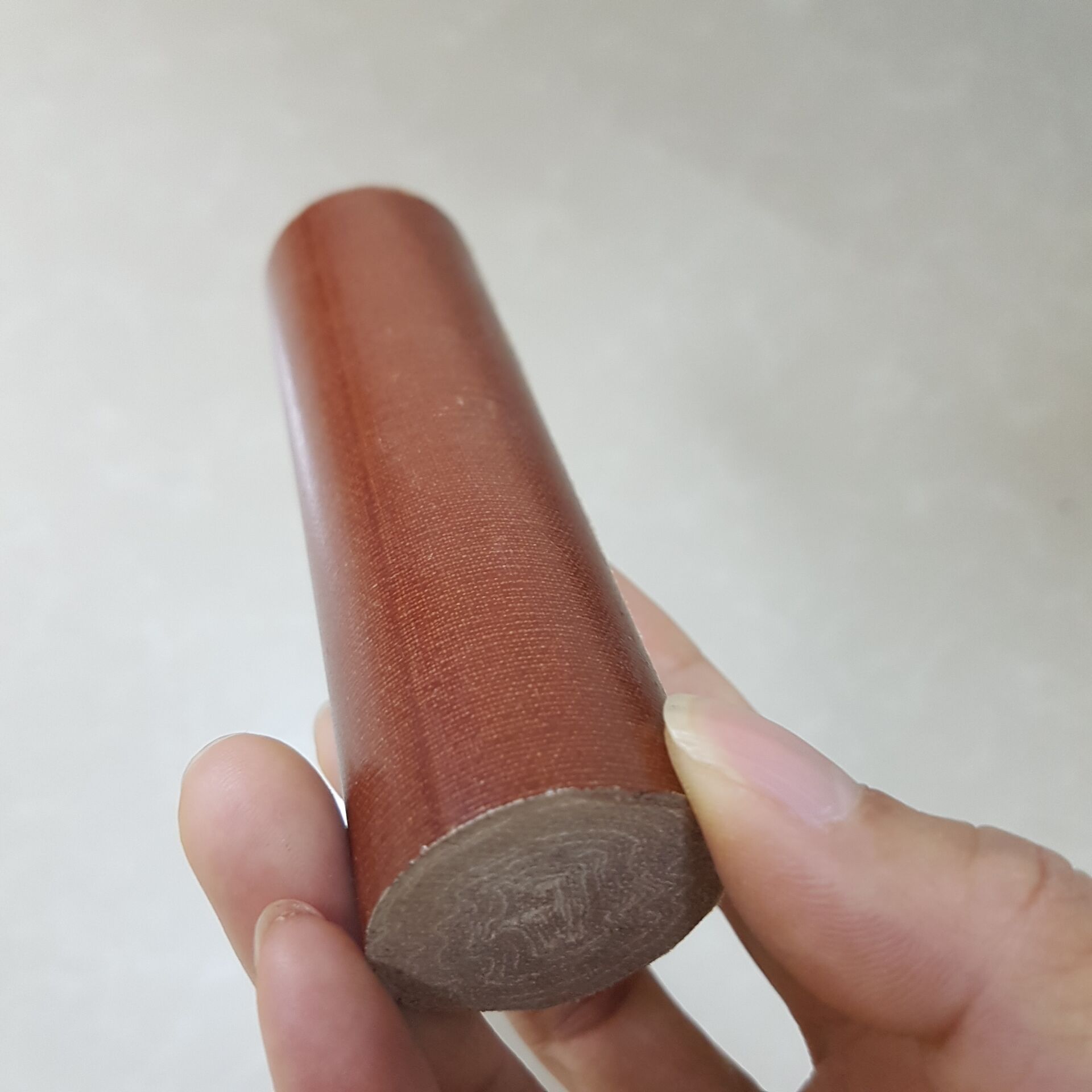

Traditional textolite rods, constructed from paper-based or cloth-based phenolic laminates, operate reliably within Thermal Class E (120°C continuous service). Even premium epoxy-glass composites such as FR4 and G10, which comply with IEC 60893 and NEMA standards, are rated for continuous operation only up to 140°C. When petrochemical processes demand 260°C resistance, the fundamental chemistry of epoxy and phenolic resin systems becomes the limiting factor—these thermosetting polymers undergo irreversible thermal decomposition, resulting in outgassing, mechanical weakening, and electrical tracking.

Material Science Principle: Why 260°C Requires Fluoropolymers or Advanced Thermoplastics

At 260°C, only materials with inherently stable molecular structures can maintain both mechanical integrity and electrical insulation properties. PTFE (Polytetrafluoroethylene), engineered by Shenzhen Xiongyihua using 100% virgin raw materials, operates continuously at temperatures up to 260°C due to its carbon-fluorine backbone, which exhibits exceptional thermal stability and chemical inertness. This material does not degrade, maintains near-zero moisture absorption, and resists attack from acids, bases, and organic solvents commonly encountered in petrochemical environments.

For applications requiring superior mechanical strength alongside thermal endurance, PEEK (Polyether Ether Ketone) represents the engineering solution. This advanced thermoplastic maintains mechanical integrity at continuous temperatures up to 260°C while offering a strength-to-weight ratio comparable to metals. Unlike traditional textolite, PEEK withstands gamma and electron-beam sterilization without degradation and meets UL 94 V-0 flame retardancy without halogenated additives.

Standard Reference Framework for Material Evaluation

Professional procurement teams evaluating insulation materials for 260°C service should apply a multi-criteria assessment framework:

1. Thermal Stability Verification: Demand documented thermal gravimetric analysis (TGA) data demonstrating less than 5% mass loss at operating temperature over 1000 hours.

2. Dielectric Performance Under Heat: Require dielectric strength and volume resistivity measurements conducted at actual service temperature, not room temperature extrapolations.

3. Chemical Compatibility Matrix: Verify resistance to specific process chemicals (aromatics, chlorinated solvents, acids) through immersion testing at elevated temperature.

4. Dimensional Stability: Confirm coefficient of thermal expansion data to prevent mechanical interference in precision assemblies during thermal cycling.

5. Certification Chain: Validate ISO9001 quality systems, SGS material certification, and RoHS environmental compliance to ensure supply chain integrity.



Shenzhen Xiongyihua’s technical team processes custom designs from client drawings, applying these evaluation criteria to recommend materials that meet actual performance requirements rather than simply offering catalog products.

Deep Insights: The Shift from Traditional Textolite to High-Performance Polymer Systems

Technology Evolution: Material Science Advancing Beyond Resin-Impregnated Laminates

The petrochemical industry is witnessing a fundamental transition in insulation material selection. Traditional textolite manufacturing—layering paper or fabric with thermosetting resin—originated in the early 20th century when operating temperatures rarely exceeded 100°C. As process intensification drives higher temperatures and pressures, material suppliers must transition from commodity laminates to engineered high-performance polymers. This shift mirrors broader industry movement toward materials selected for specific molecular properties rather than generic "electrical grade" categories.

Market Trend: Regulatory Pressure and Safety Standards

Emerging safety regulations increasingly mandate flame-retardant materials that produce minimal smoke and toxic gases during fire events. Petrochemical facilities, classified as high-risk environments, face stringent fire safety codes. Materials like PTFE, which naturally achieve UL 94 V-0 rating without halogenated additives, and produce virtually no smoke, align with evolving safety mandates. Suppliers who can demonstrate compliance with IEC 60893, NEMA standards, and environmental certifications (RoHS, REACH) position themselves as long-term partners rather than transactional vendors.

Risk Alert: Hidden Failure Modes in High-Temperature Applications

A critical but often overlooked failure mechanism in high-temperature electrical insulation is thermal tracking—the formation of conductive carbon pathways across insulator surfaces due to partial discharge combined with contamination. Standard textolite materials, particularly paper-based phenolic laminates, are vulnerable to tracking at elevated temperatures. Advanced materials like FR4 tubes manufactured with anti-tracking additives specifically address this failure mode. Procurement specifications for 260°C applications must explicitly require arc resistance testing per ASTM D495 and comparative tracking index (CTI) measurement per IEC 60112.

Standardization Direction: Performance-Based Specifications Over Brand Preferences

The industry is moving away from brand-centric procurement toward performance-based material specifications. Rather than requesting "textolite rods from Brand X," engineering teams should specify required properties: continuous operating temperature, dielectric strength at temperature, chemical exposure environment, mechanical loading conditions, and compliance certifications. This approach enables material suppliers like Shenzhen Xiongyihua, with monthly production capacity exceeding 1000 tons and supply ability of 100 tons per product line, to recommend optimal solutions—whether PTFE rods, PEEK components, or advanced composite structures—based on actual application requirements.

Company Value: How Xiongyihua Advances Petrochemical Material Engineering

Shenzhen Xiongyihua Plastic Insulation Ltd. contributes to industry knowledge advancement through its integrated "material plus processing" capability model. Unlike distributors who simply supply catalog items, the company operates advanced CNC machining centers, laser engraving systems, and precision fabrication equipment, enabling the transformation of raw high-performance polymers into finished components machined to customer specifications. This vertical integration allows engineering teams to consult on material selection while simultaneously ensuring manufacturability.

The company’s technical accumulation, built over two decades serving global markets spanning Southeast Asia, Europe, Australia, and the Americas, provides practical engineering insights that extend beyond material datasheets. When clients present challenging requirements—such as bushings for high-voltage equipment operating in corrosive atmospheres at 260°C—Xiongyihua’s experienced technical team applies systematic material selection logic: evaluating thermal stability, chemical resistance, dielectric performance, and mechanical properties in combination, then recommending solutions such as virgin PTFE or PEEK rather than attempting to extend traditional textolite beyond its performance envelope.

Quality system certifications including ISO9001, comprehensive material certifications from SGS, and environmental compliance documentation (RoHS, CE marking, ISO14001, EPR registration) establish the company as a reliable reference source for procurement professionals developing supplier qualification frameworks. The ability to provide not only materials but also custom fabrication services—CNC carving, laser engraving, precision drilling, tapping, and welding—positions Xiongyihua as a solutions provider rather than a commodity supplier, addressing the complete value chain from material science to finished components.

Conclusion and Industry Recommendations

The search for "top 10 textolite rod brands" for 260°C petrochemical applications reveals a more fundamental question: traditional textolite materials are inherently limited by their thermosetting resin chemistry and cannot reliably serve at this temperature threshold. Professional material selection requires recognizing when application requirements exceed conventional material boundaries and transitioning to high-performance polymers engineered for extreme service conditions.

For petrochemical facility managers, electrical design engineers, and procurement professionals facing high-temperature insulation challenges, the recommended approach involves: (1) developing performance-based specifications that define actual operating conditions rather than requesting generic materials by traditional category names; (2) engaging with material suppliers who demonstrate technical depth through certifications, processing capabilities, and global industry experience; (3) validating material selection through documented testing at actual service temperatures rather than room-temperature extrapolations; and (4) considering total cost of ownership—including extended service life, reduced maintenance downtime, and enhanced safety—rather than initial material cost alone.

The petrochemical industry’s evolution toward higher process temperatures and stricter safety standards demands a parallel evolution in material science partnerships. Suppliers who combine deep technical expertise, comprehensive material portfolios spanning from traditional laminates to advanced fluoropolymers, and integrated fabrication capabilities position themselves as strategic partners in this transformation. As operating conditions continue to intensify, the ability to navigate material selection with rigorous engineering logic becomes increasingly critical to operational safety, reliability, and economic performance.
